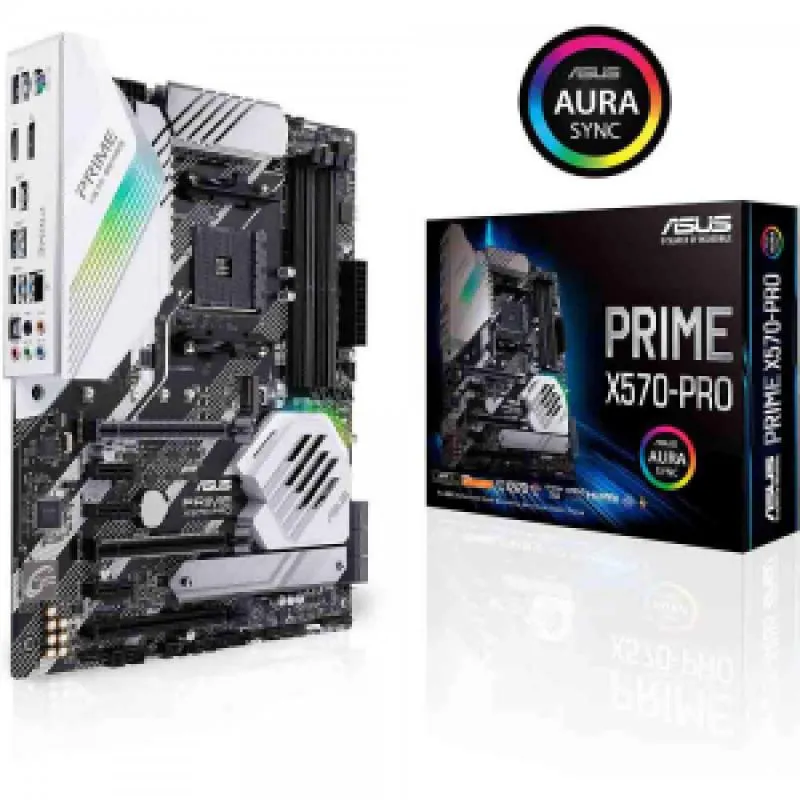

مادربرد ایسوس مدل PRIME X570-PRO

• برند
  ایسوس

مشخصات فیزیکی

• فرم فاکتور
  ATX

پردازنده و چیپ ست

• نوع سوکت پردازنده
  AMD AM۴

• تعداد سوکت پردازنده
  یک عدد

• چیپ ست
  AMD X۵۷۰

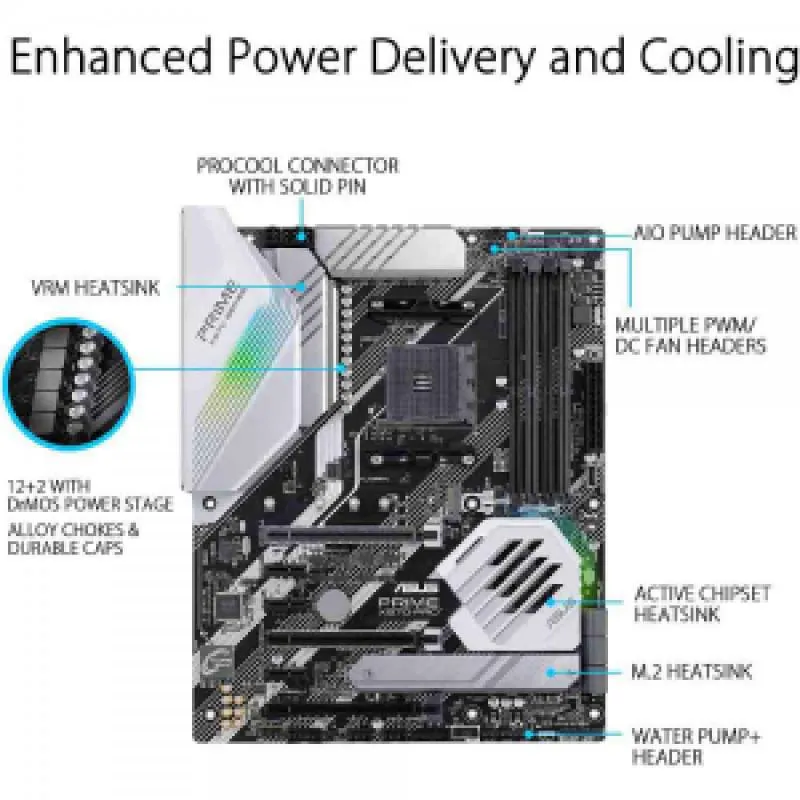

• برد تغذیه
  12+2 فاز

• پردازنده های پشتیبانی شده
  ™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors

• پشتیبانی از RAID
  RAID 0 , RAID 1 , RAID 10

حافظه RAM

• تعداد اسلات حافظه
  چهار عدد

• پیکربندی حافظه
  دو کاناله

• استانداردهای حافظه
  5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory

• حداکثر حافظه پشتیبانی
  128 گیگابایت

• پروفایل حافظهAMP
  close

• پروفایل حافظه XMP
  check

• توضیحات حافظه

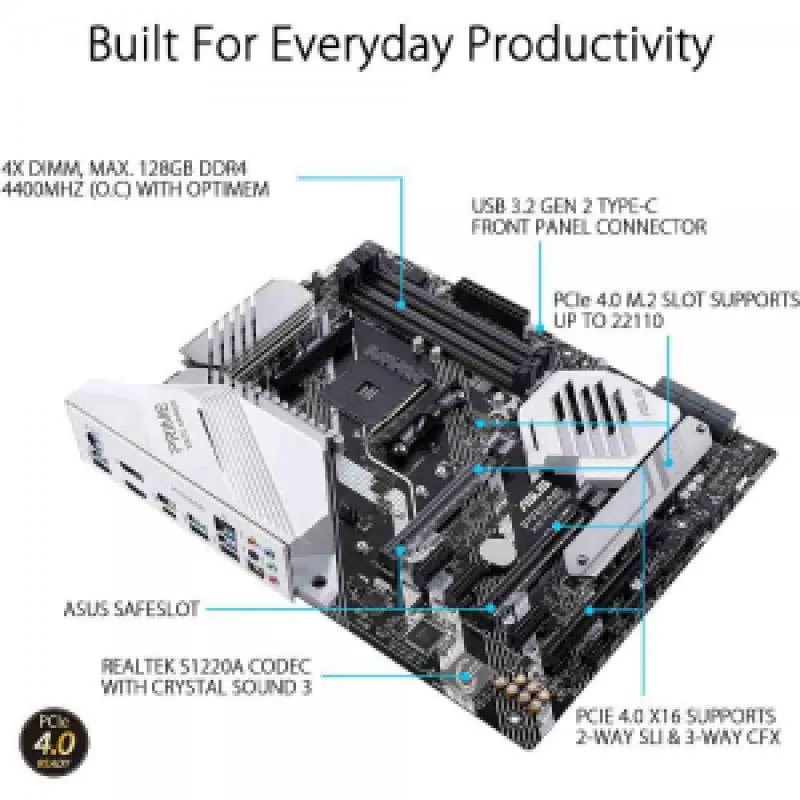

  4x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.

کارت گرافیک

• اسلات PCI Express x16
  سه عدد

• پشتیبانی ازSLI
  دو مسیره

• پشتیبانی از Crossfire
  دو مسیره , سه مسیره

• سایر توضیحات کارت گرافیک
  Integrated Graphics in AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors Supports NVIDIA 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology AMD Ryzen™ 3000 G-Series/ 2000 G-Series Desktop Processors Supports AMD 2-Way CrossFireX™ Technology

اتصالات داخلی

• اسلات PCI Express x1
  سه عدد

• اسلات PCI Express x4
  close

• اسلات PCI
  close

• کانکتور Mini PCI Express
  close

• کانکتور SATA 3.0
  6 عدد

• کانکتور SATA 2.0
  close

• کانکتور eSATA
  close

• کانکتور mSATA
  close

• کانکتور SATA Express
  close

• کانکتور M.2
  2 عدد

• کانکتور Thunderbolt
  close

• دکمه‌ها، سوییچ‌ها و جامپره
  1x Clear CMOS jumper(s)

• سایر توضیحات مربوط به اسلات‌ها
  AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8) AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors 2 x PCIe 3.0 x16 (x16 or dual x8) AMD RyzenTM 3000 G-Series / 2000 G-Series Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1

• هدر USB2.0
  2 عدد

• هدر USB3.0
  close

• هدر USB3.1
  close

• هدر USB 3.2
  2 عدد

• هدر USB 3.1 Type-C
  close

• هدر USB 3.2 Type-C
  close

• توضیحات تکمیلی هدرها

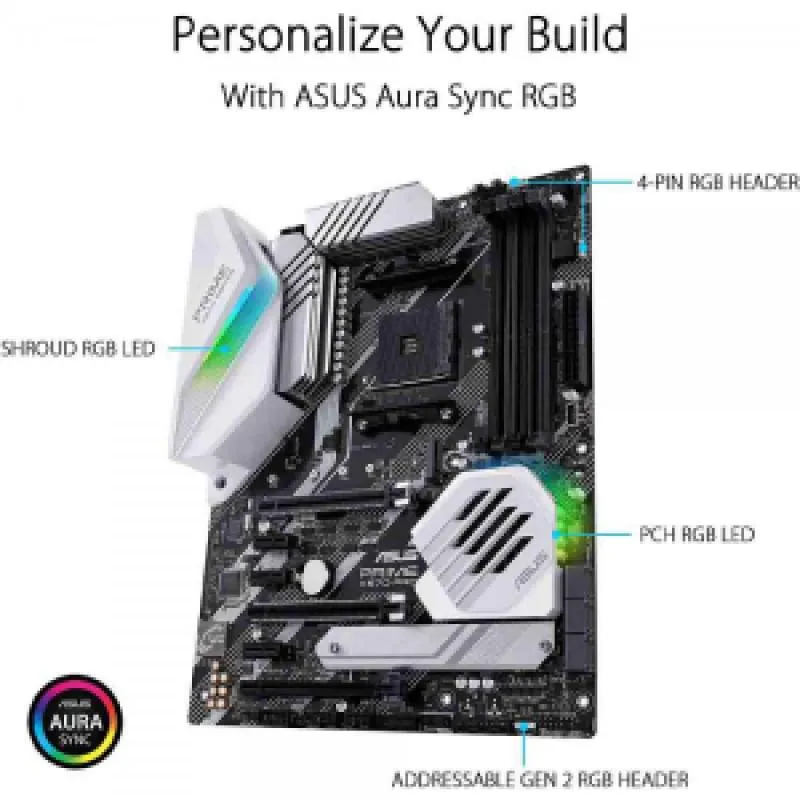

  2x Aura RGB Strip Headers 1x Addressable Gen 2 header(s) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1x SPI TPM header 1x COM port(s) connector(s) 6x SATA 6Gb/s connector(s) 1x CPU Fan connector(s) (1 x 4 -pin) 1x CPU OPT Fan connector(s) (1 x 4 -pin) 3x Chassis Fan connector(s) (3 x 4 -pin) 1x PCH_FAN (1 x 4 -pin) 1x AIO_PUMP connector (1 x 4 -pin) 1x 24-pin EATX Power connector(s) 1x 8-pin ATX 12V Power connector(s) 1x 4-pin ATX 12V Power connector(s) 1x Front panel audio connector(s) (AAFP) 1x System panel(s) 1x Power-on button(s) 1x Clear CMOS jumper(s) 1x Node Connector(s) 1x Water Pump header (4-pin) 1x T_Sensor Connector 1x USB 3.2 Gen 2 (up to 10Gbps) connector 1x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

• مجموع کانکتور فن
  6 عدد

پنل پشتی

• پورت USB2.0
  close

• پورت USB3.0
  close

• پورت USB3.1
  close

• پورت USB 3.2 Gen 1
  4 عدد

• پورت USB 3.2 Gen 2
  3 عدد

• پورت USB Type-C
  close

• پورت USB 3.2 Type-C
  1 عدد

• پورت HDMI
  check

• پورت (Serial)VGA
  close

• پورت DVI
  close

• پورت DisplayPort
  check

• پورت D-Sub
  close

• پورت LPT (Parallel)
  close

• پورت LAN
  check

• کارت شبکه LAN
  Intel® I211-AT ASUS LAN Guard

• کارت شبکه Wi-Fi
  close

• بلوتوث
  close

• کارت صدا
  Realtek S1220A

• کانال‌های صوتی
  8 کانال

• جک 3.5 میلی متری
  5 عدد

• خروجی صدای S/PDIF
  check

• ورودی صدای S/PDIF
  close

• توضیحات کارت صدا
  Realtek S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Front panel audio connector (AAFP) - Supports up to 32-Bit/192kHz playback *1 Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding - Dedicated audio PCB layers - Premium Japanese-made audio capacitors - EMI protection cover to prevent electrical noise to affect the amplifier quality

• توضیح تکمیلی پورت‌ها

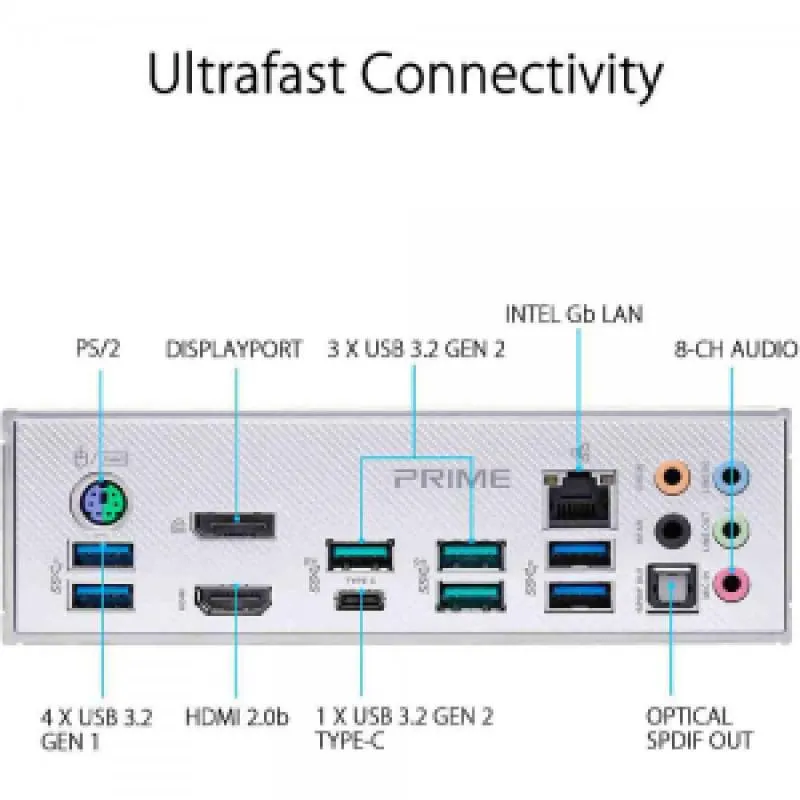

  1x PS/2 keyboard/mouse combo port(s) 1x DisplayPort 1x HDMI 1x LAN (RJ45) port(s) 1x Optical S/PDIF out 5x Audio jack(s) 4x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 3x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)

• توضیح تکمیلی پورت‌های USB
  2000 Series/ 2000 G-Series Desktop Processors : 4x USB 3.2 Gen 1 port(s) (4 at back panel, blue, Type-A) AMD X570 chipset : 1x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, 3 x Type-A+1 x Type-C) AMD X570 chipset : 2x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4x USB 2.0 port(s) (4 at mid-board)

سایر مشخصات

• پنل اورکلاک
  check

• کلید ریست روی مادربرد
  close

• بایوس دوگانه
  close

• سون سگمنت Debugging
  close

• ویژگی‌های خاص
  5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App DIGI+ VRM: Digital power design with Dr. MOS EPU Guidance TPU Insight Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Turbo App: system performance tuning, network priority, and audio scene configuration for selected applications. ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM - Digital power design with Dr. MOS - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS SafeSlot - Protect your graphics card Investment ASUS OptiMem： - Improved DDR4 Stability AURA : - Aura Lighting Control - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Turbo LAN - Armoury Crate - Pre-mounted I/O Shield ASUS Quiet Thermal Solution : - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector

• مشخصات تکمیلی
  256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

• توضیح تکمیلی ذخیره‌سازیStorage
  AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : 1x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 1x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 6x SATA 6Gb/s port(s) Support Raid 0, 1, 10

• رنگ ها
  مشکی
